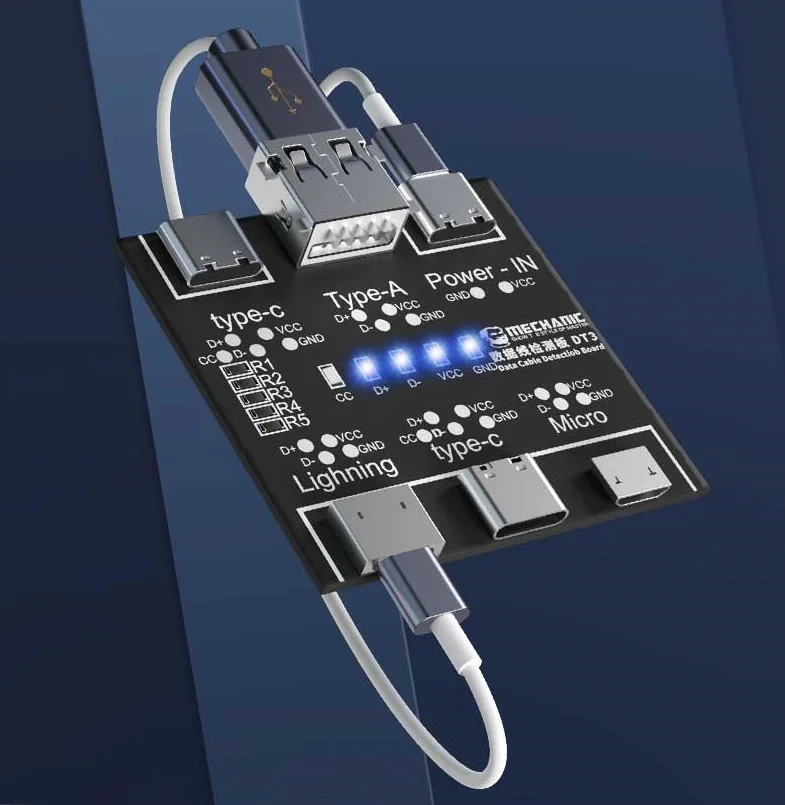

MECHANIC DT3 Data Cable Detection Board Test PCB Board For iOS Android USB Type-C Lightting Date Cable On-Off Detection ToolItem NO.: SR-2691

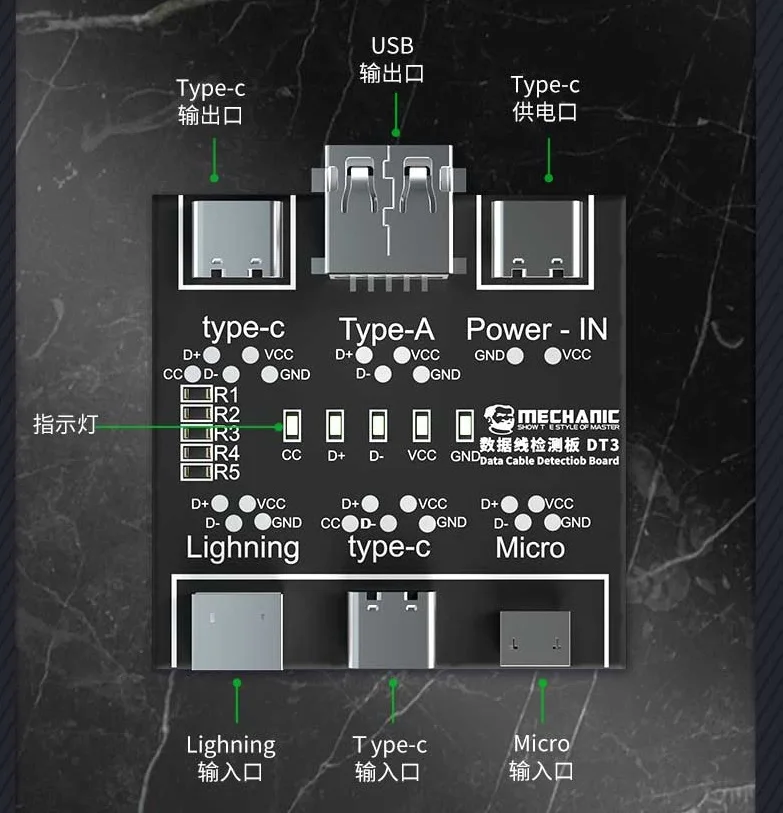

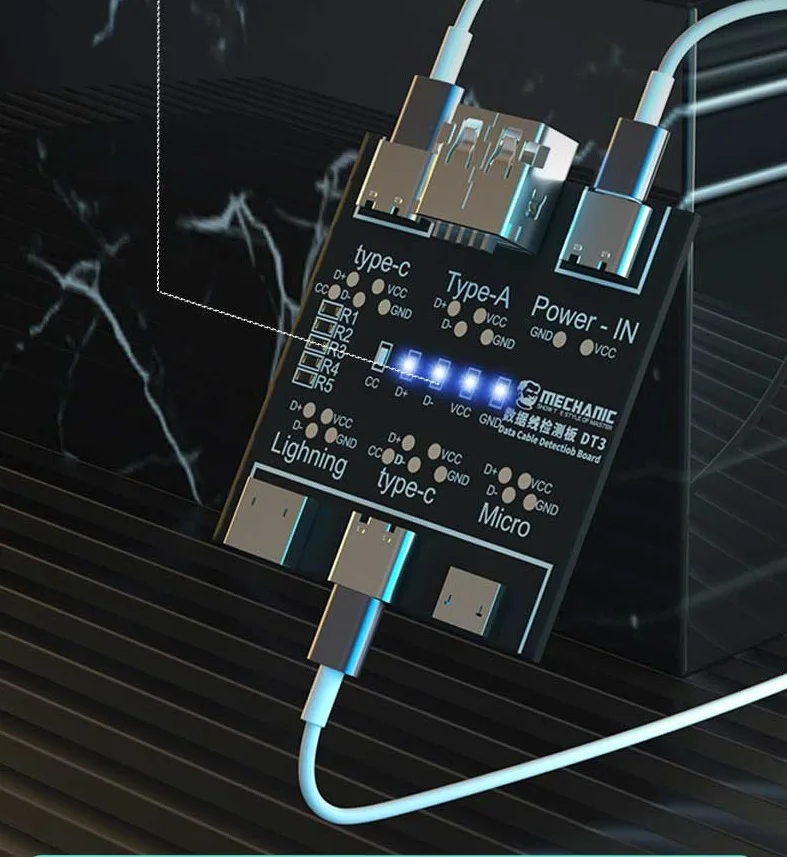

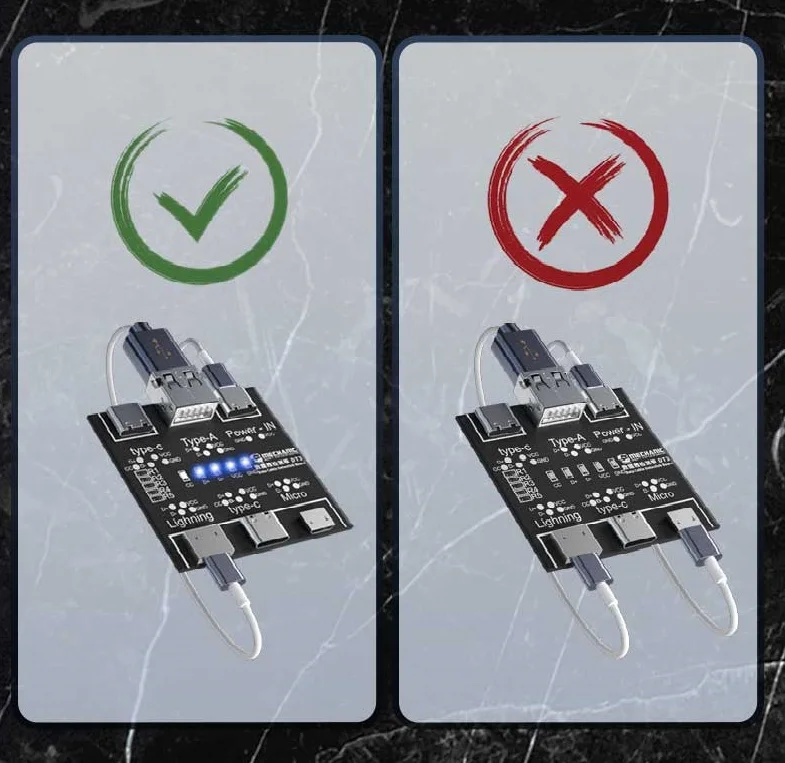

--All 4 indicator lights are on, then the data line is normal (double-head type-c data line requires all 5 indicator lights to be on).

   If "VCC" or "GND" is not lit, it indicates that the charging function of the data line is abnormal.

  "D+" or "D-" is off, indicating that the data transmission function is abnormal.

  "CC" is dedicated to double-head type-c data line detection. When testing other data lines, the light will not turn on.

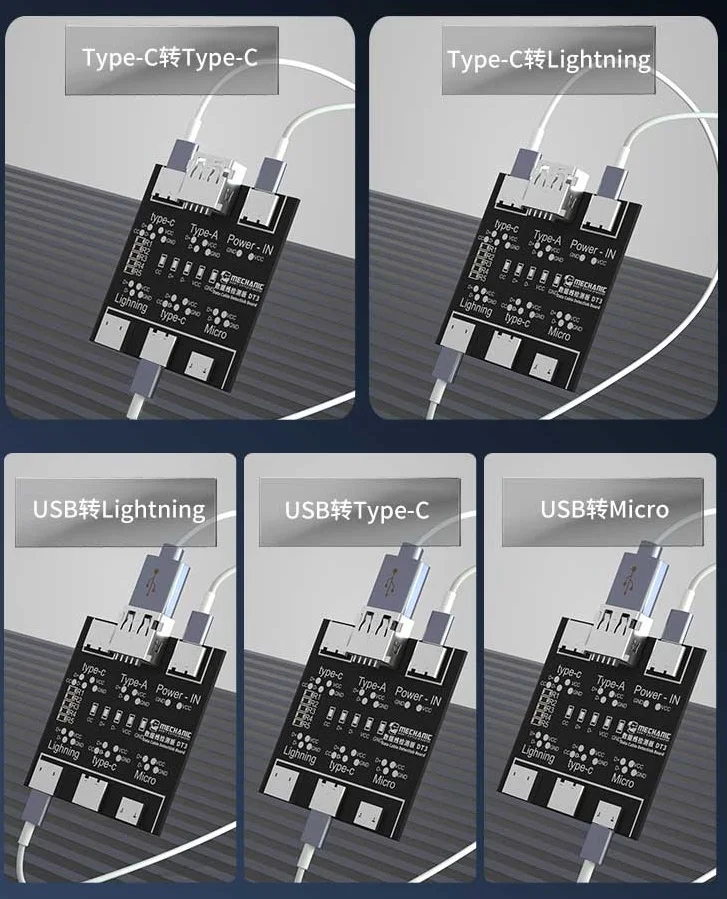

--Type-c to Type-c

   Type-c to Lighting

   USB to Lighting

   USB to Type-c

   USB to Micro

--The operation is simple, the detection is convenient, and the detection efficiency of the data line is improved.

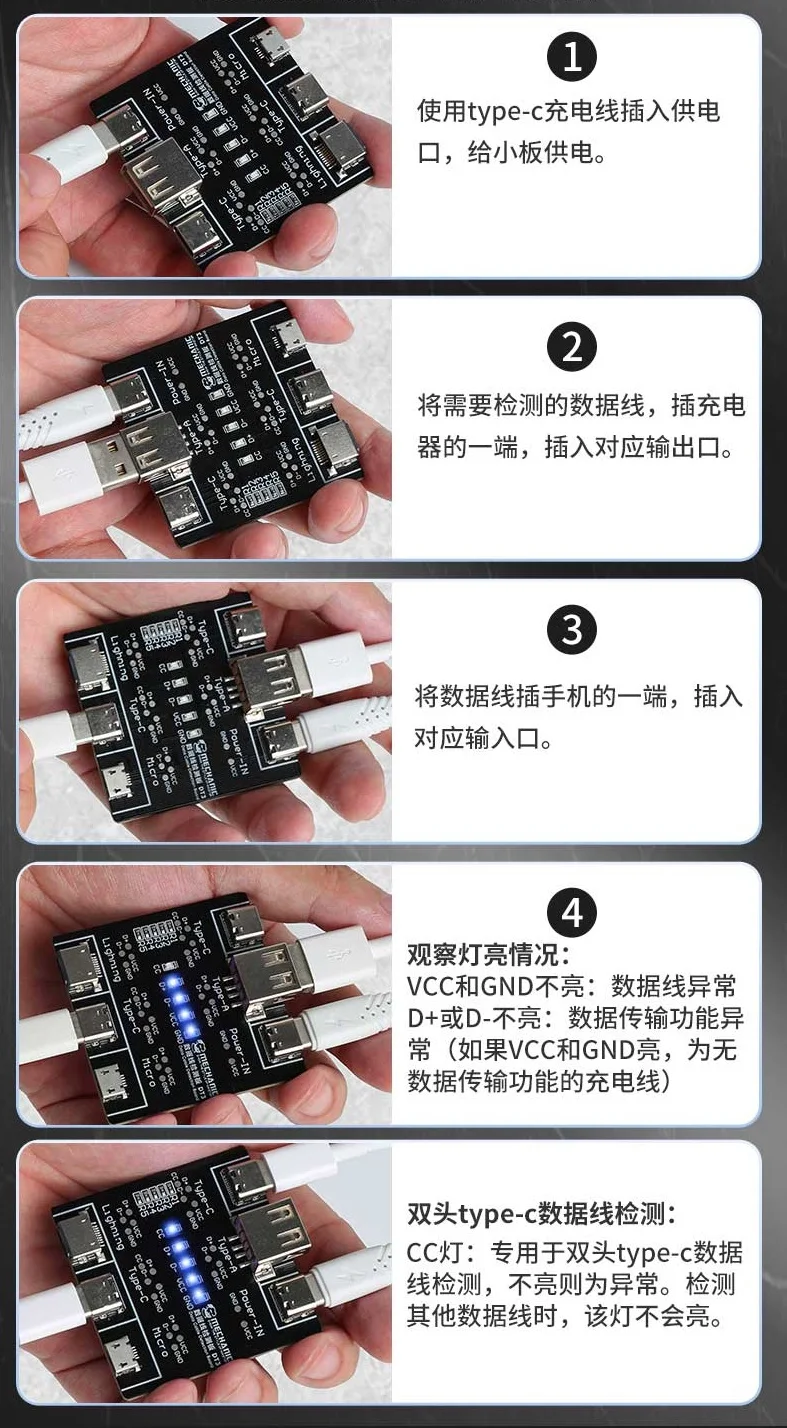

 -- Use the type-c charging cable to plug into the power supply port to supply power to the product.

     Insert one end of the data cable that needs to be tested into the corresponding port.

     Insert the other end of the data cable into the corresponding port.

    Observe the indicator light.

--Uncompromising performance in an ultra-light body, heavyweight performance without the weight. Fine and flexible packaging, delicate appearance.
