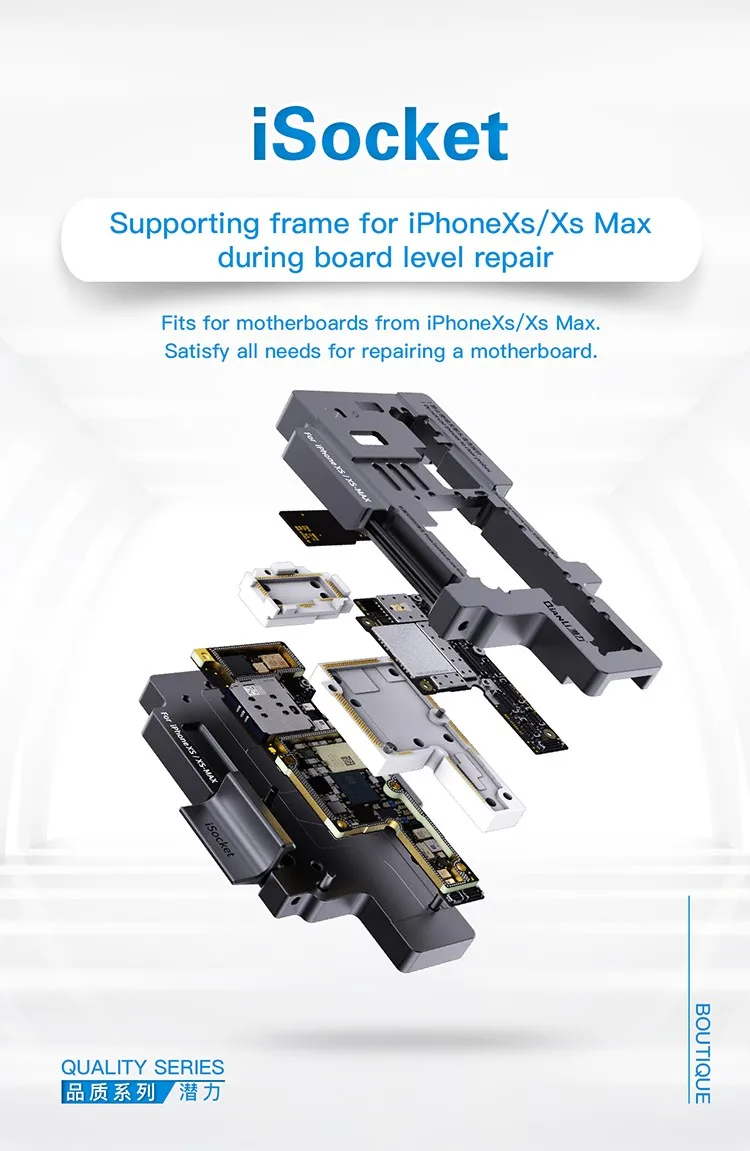

Qianli iSocket Motherboard Layered Test Fixture And Repair Tools For Phone XS/XS MAX

Detail

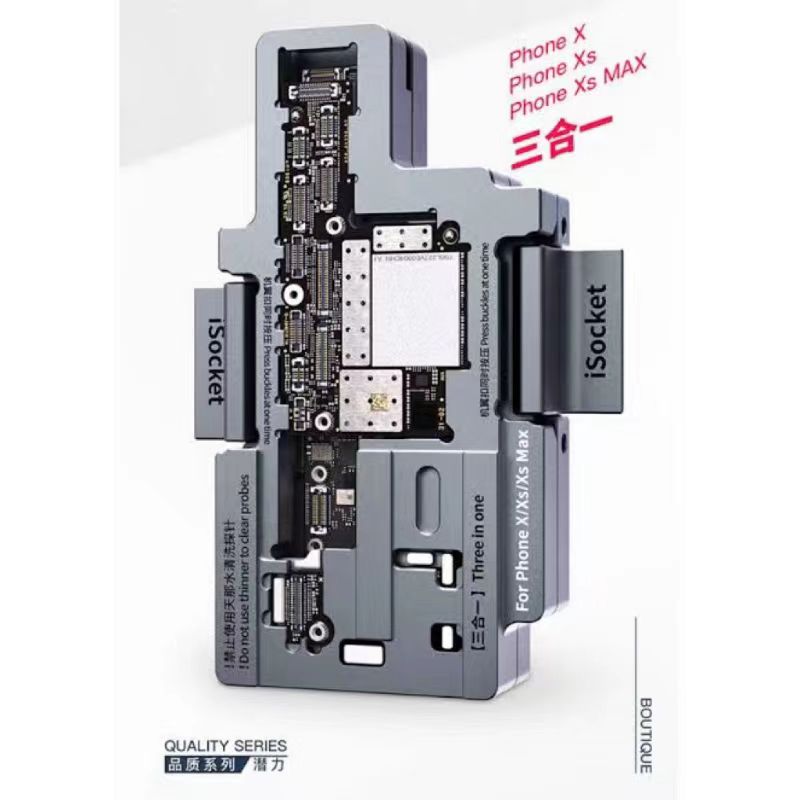

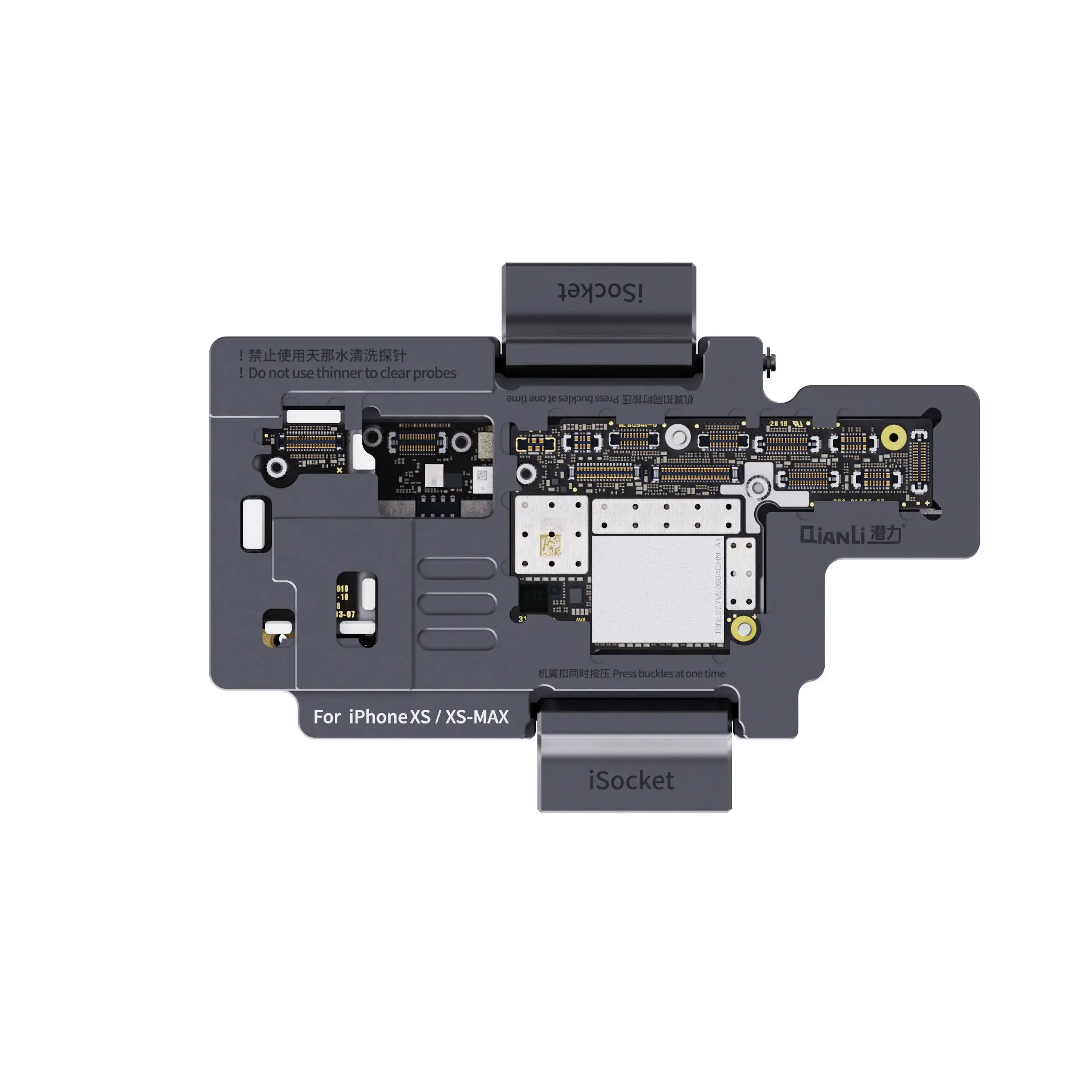

Product Name: Qianli iSocket Motherboard Layered Test Fixture And Repair Tools For Phone XS/XS MAX
Item NO.: SR-3773
Weight: 0.35 kg = 0.7716 lb = 12.3459 oz
Category: Repair Tools > Tools Brand > Qianli
Creation Time: 2024-11-19

Product Description

Product Name	Qianli Original iSocket for 11/11Pro series Motherboard Layered Test Frame and repair Function Tester

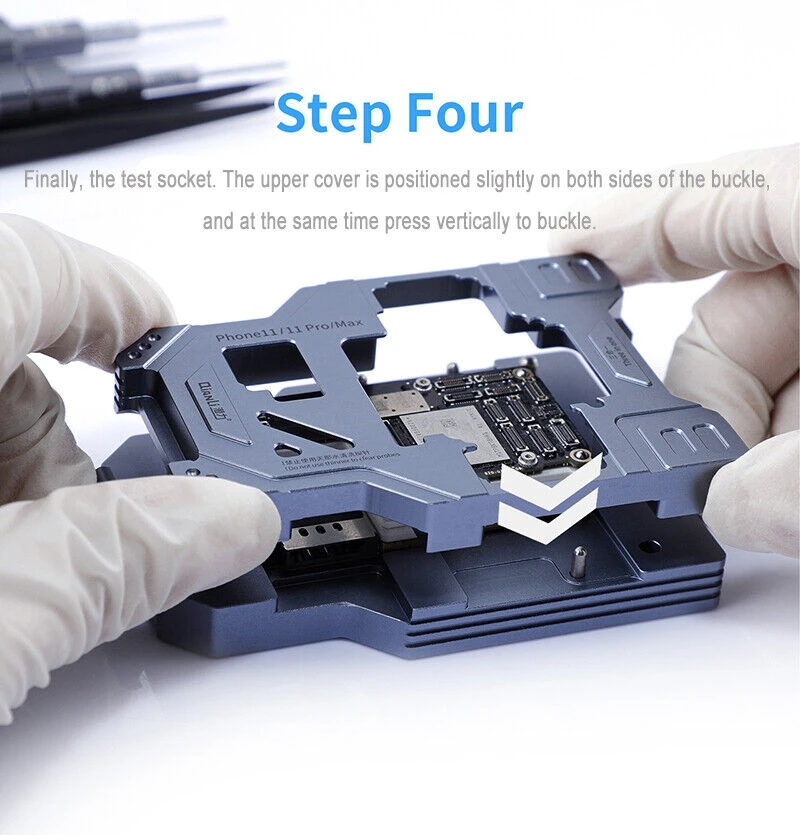

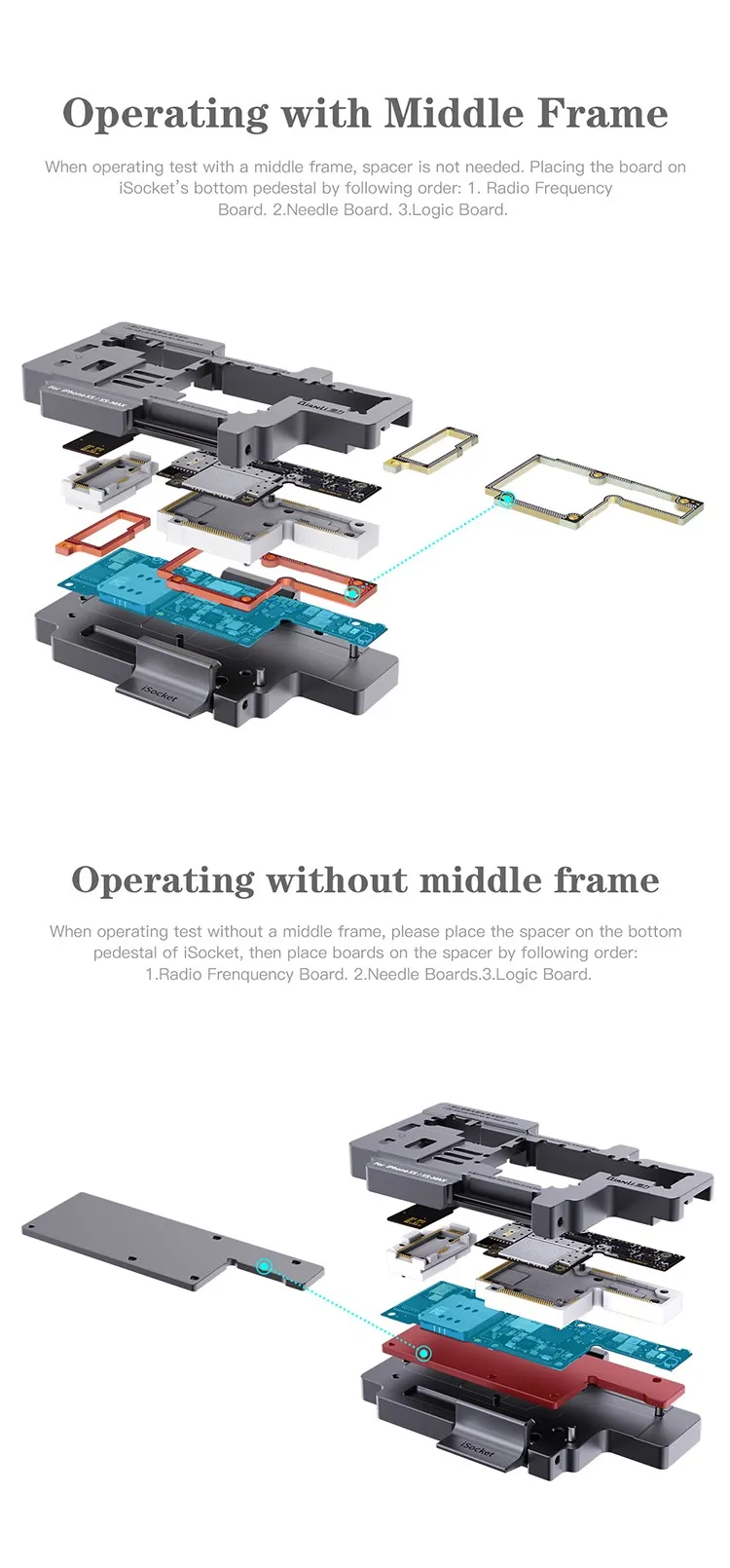

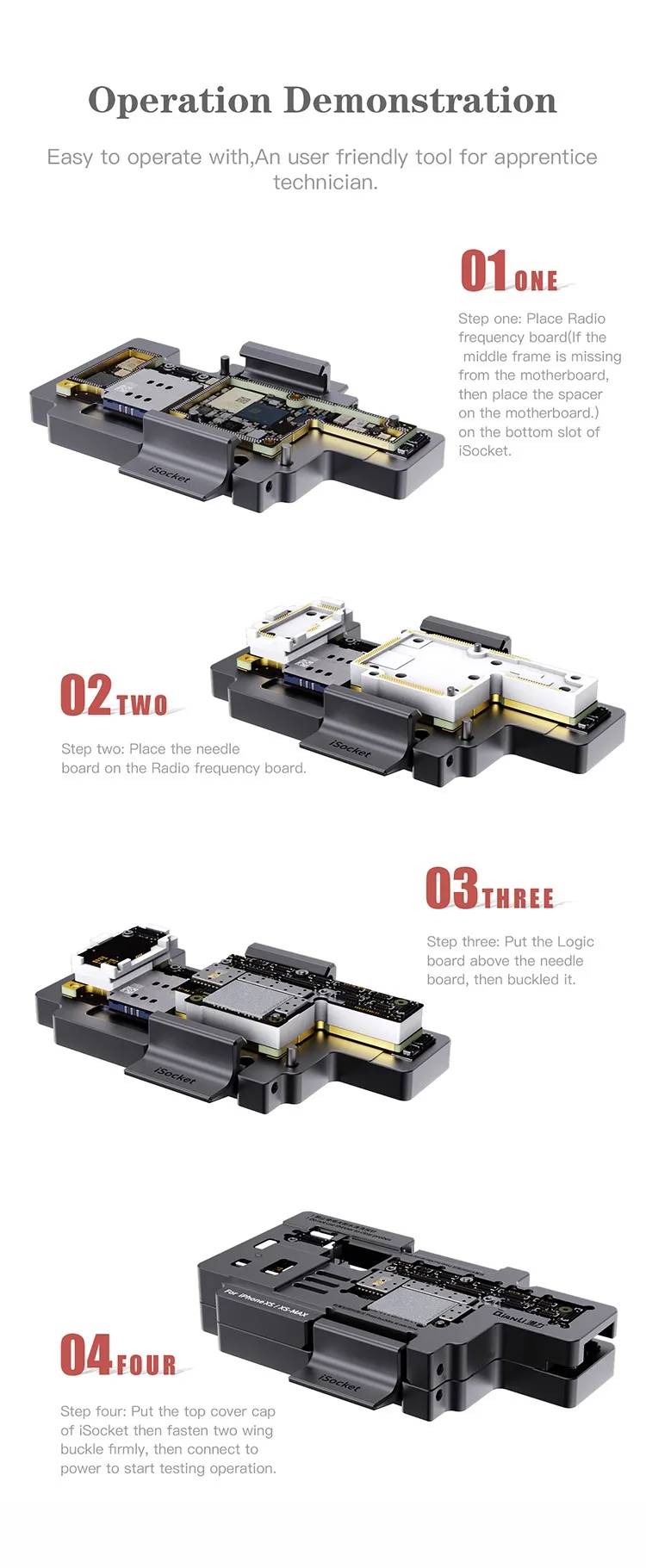

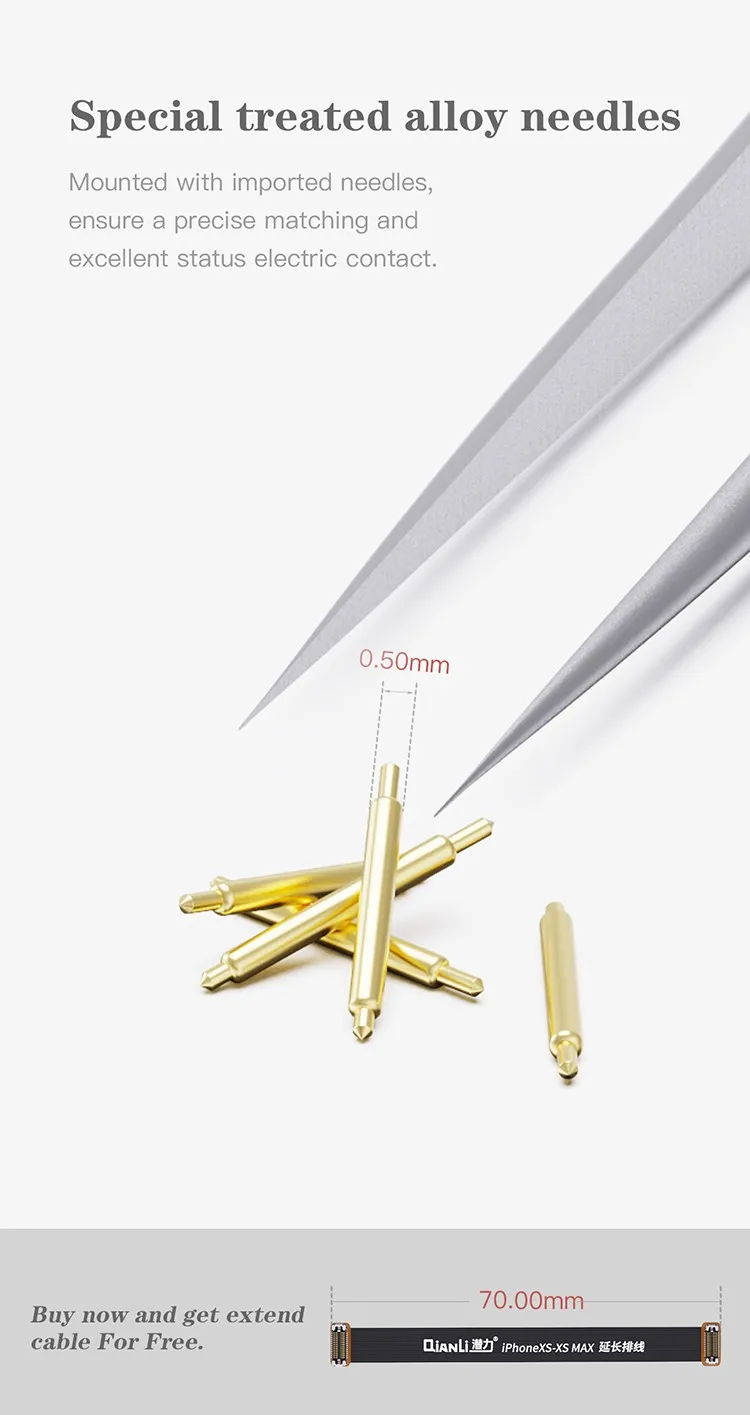

Description	1. Suitable for iPhone X/XS/XS Max 2. Solve the problem of maintenance personnel is testing of layered motherboards, save a lot of complicated processes, and make motherboard testing simple and fast 3. Reasonable use of limited space design, non-market patchwork, more stable design with heart 4. Simple and fast operation, easy to use 5. iSocket is designed in a light and compact shape, which can be directly placed under the microscope for observation to improve work efficiency 6. There is a middle frame, no need to place spacers, and the RF main board, pin board, and logic main board are laminated and stacked on the test frame base in turn 7. For use without a middle frame, first, place the gasket on the base of the test frame, and then place the RF motherboard, pin board, and logic motherboard on the base of the test frame 8. The double-headed probe accurately aligns the small holes to improve the contact performance, the fixed buckle is buckled, the motherboard does not warp, and the test data is more accurate 9. High-precision CNC machine tool processing, control of every detail 10. Using a high-quality beryllium copper spring probe, good conductivity, product overload stability, small deviation of detection value, more accurate, the tapered probe is not easy to get rosin, solder 11. The selection of materials for each component has undergone strict experimental tests, with high hardness, not easy to deform, and maximizes service life
Feature	Mini design, easy to carry. Special Premium quality material Preferred needle plate quality High precision for holding iPhone 12 series motherboard Advanced inspection to avoid any damage because of repeated disassembly and installation Easy to use, connect the upper and lower layer of the iPhone 12 series motherboard for fast testing. The iPhone 11 series motherboard test fixture: The upper layer and lower layer of the iPhone 12 series logic board is weld together, before repairing, you need to disassemble the 2 layer board, then attach them together after repair is done. If the problem on the motherboard can not be solved, you need to repeat the disassembly and reassembly operation, which is easy to produce chip virtual welding, CPU tin damage, and other problems! Therefore, the iPhone 11 series motherboard test fixture perfectly solves the problems and offer professionals more efficient repair.
Quality	Grade A A A (Premium Plus Quality)
Style	Brand New
Tested	100% Passed Test
Payment	Accept payment of T/T, Western Union, MoneyGram, Paypal, Cash.
Shipment	DHL,UPS,FEDEX,TNT,etc.
Delivery	Fast Delivery within 48 hours, 2-4 working days delivered by DHL
