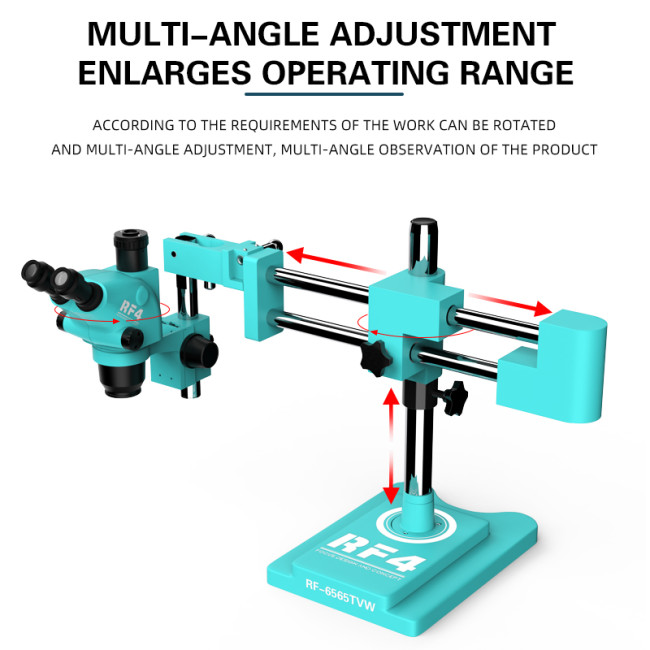

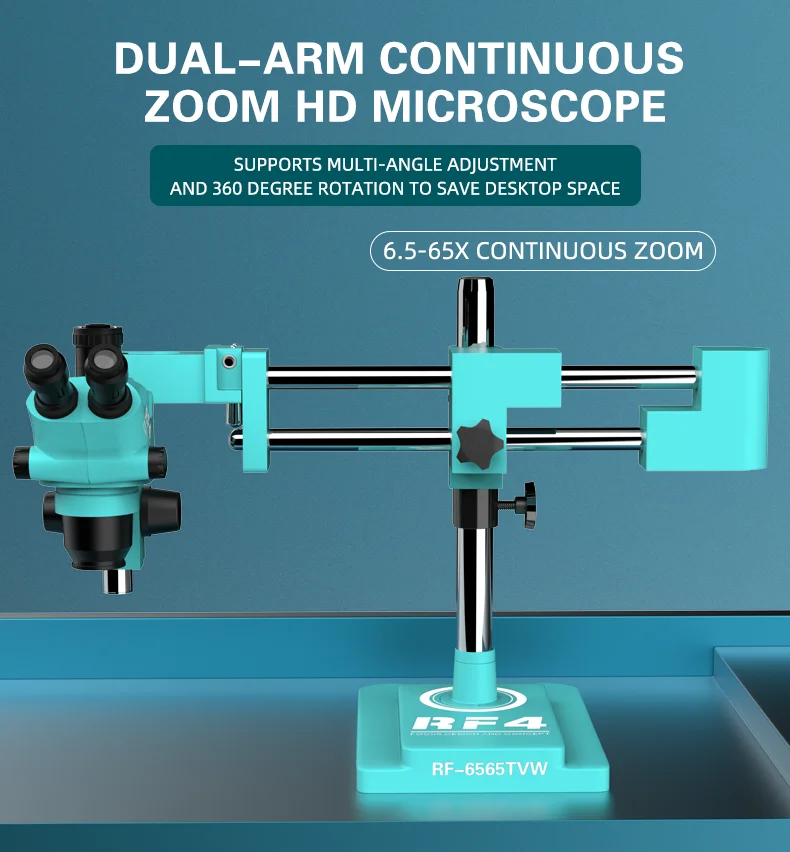

RF4 6.5-65X 360 ° Double Boom Bracket Synchronous Zoom Magnification Observation Triocular Binocular Stereo Microscope RF6565TWItem NO.: SR-3011
- RF4 6.5-65X 360 ° Double Boom Bracket Synchronous Zoom Magnification Observation Triocular Binocular Stereo Microscope RF6565TW
-
- Product Name: RF4 6.5-65X 360 ° Double Boom Bracket Synchronous Zoom Magnification Observation Triocular Binocular Stereo Microscope RF6565TW
- Item NO.: SR-3011
- Weight: 22 kg = 48.5017 lb = 776.0272 oz
- Category: Repair Tools > Tools Brand > RF4
- Creation Time: 2024-06-27

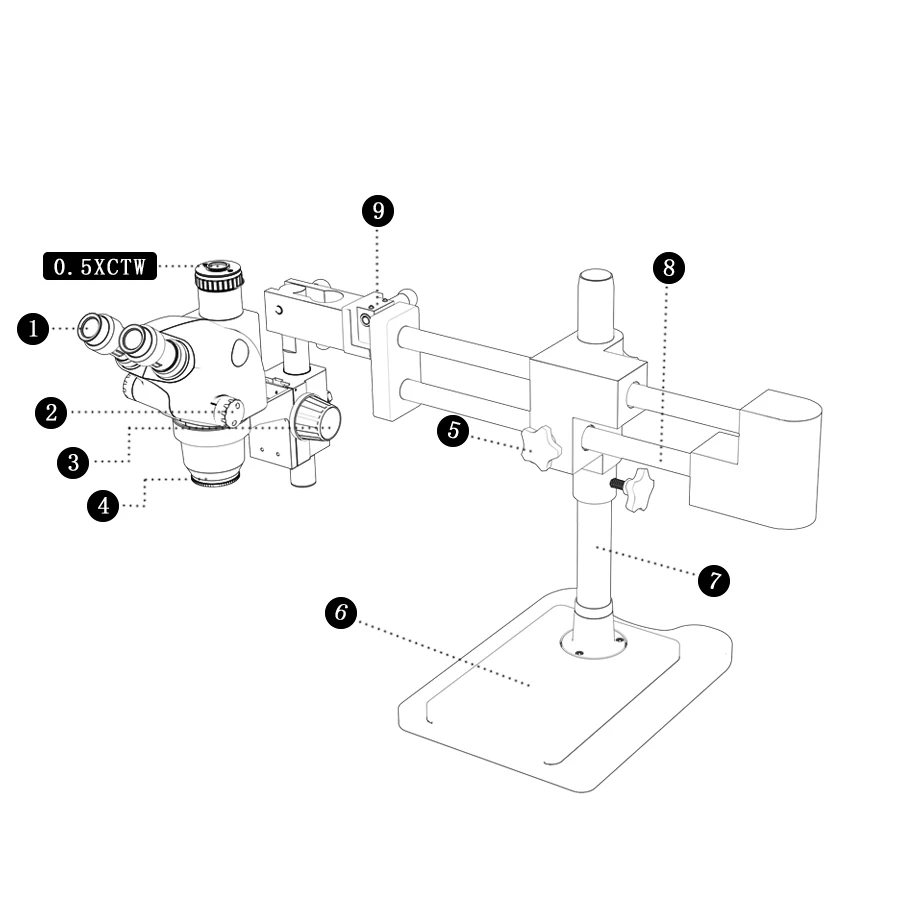

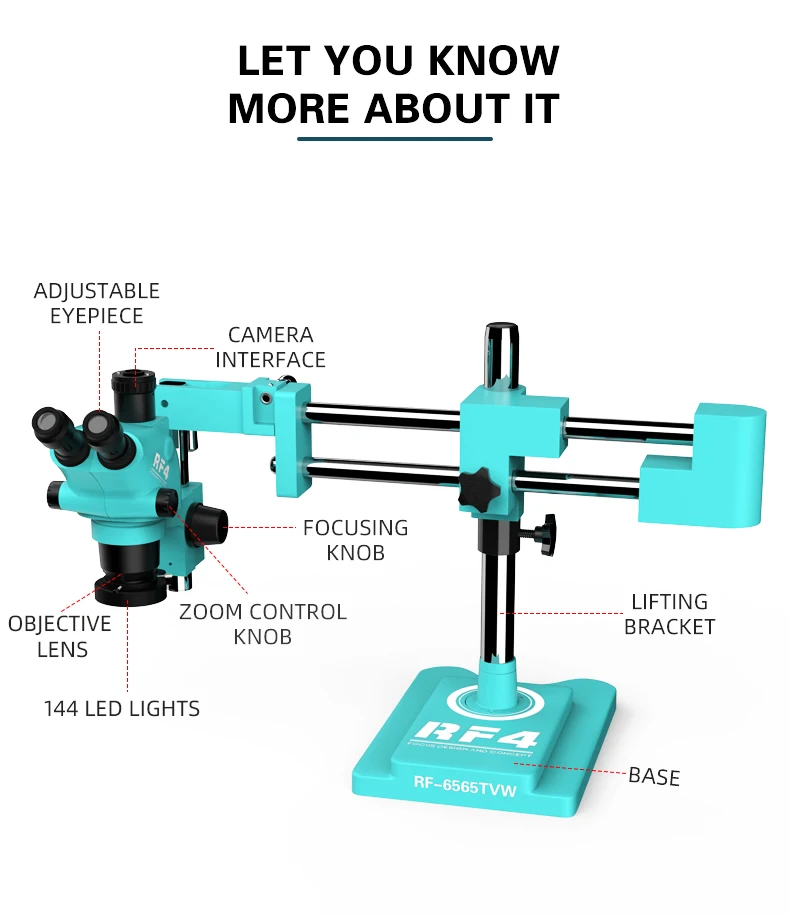

Structure
1 Eyepieces
2 Zoom Control Knob
3 Focusing knob
4 Objective lens
5 Retaining screw
6 Base
7 Round Column
8. Double arm
9. Steering adjusting screw
Support parameters
Column aperture: Φ32mm
Lens aperture: Φ76mm
Center distance: 155mm
Lifting range: 50mm
The base parameters
Column height: 377mm
Diameter：φ32mm
Double arm backet Length：529mm
Base: 210 x260x56.6mm

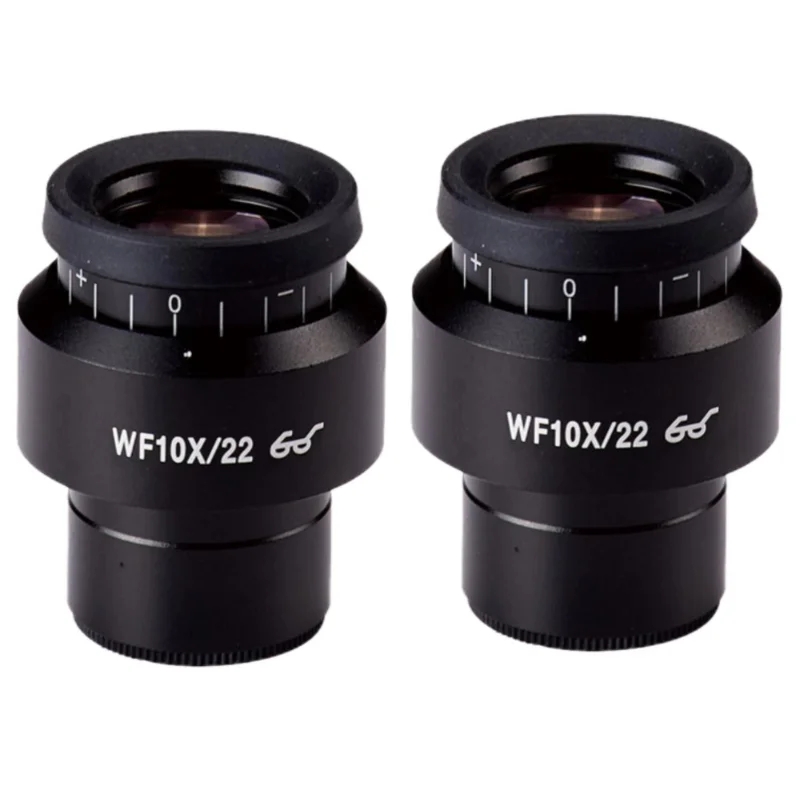

Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm

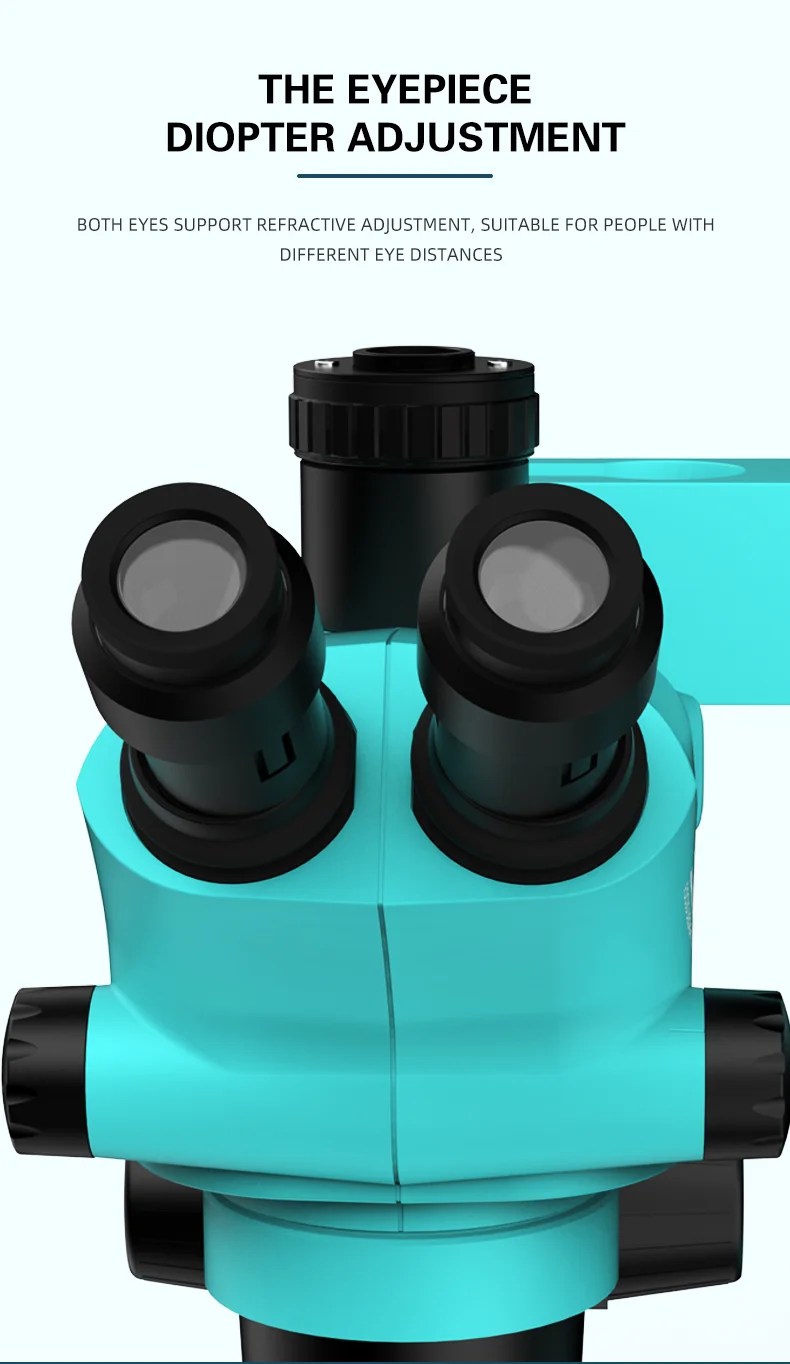

Ajustable Eyepiece Lens，Suit for Stereo Microscope.
0.5X Adapter
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.
2The adapter ring can use LCD to focus, this kind of focus method is manual focus.
3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.
4 Weight: 0.09kg.
microscope dustproof lens
Dustproof and soot proof, good light transmittance, support various types of stereomicroscope

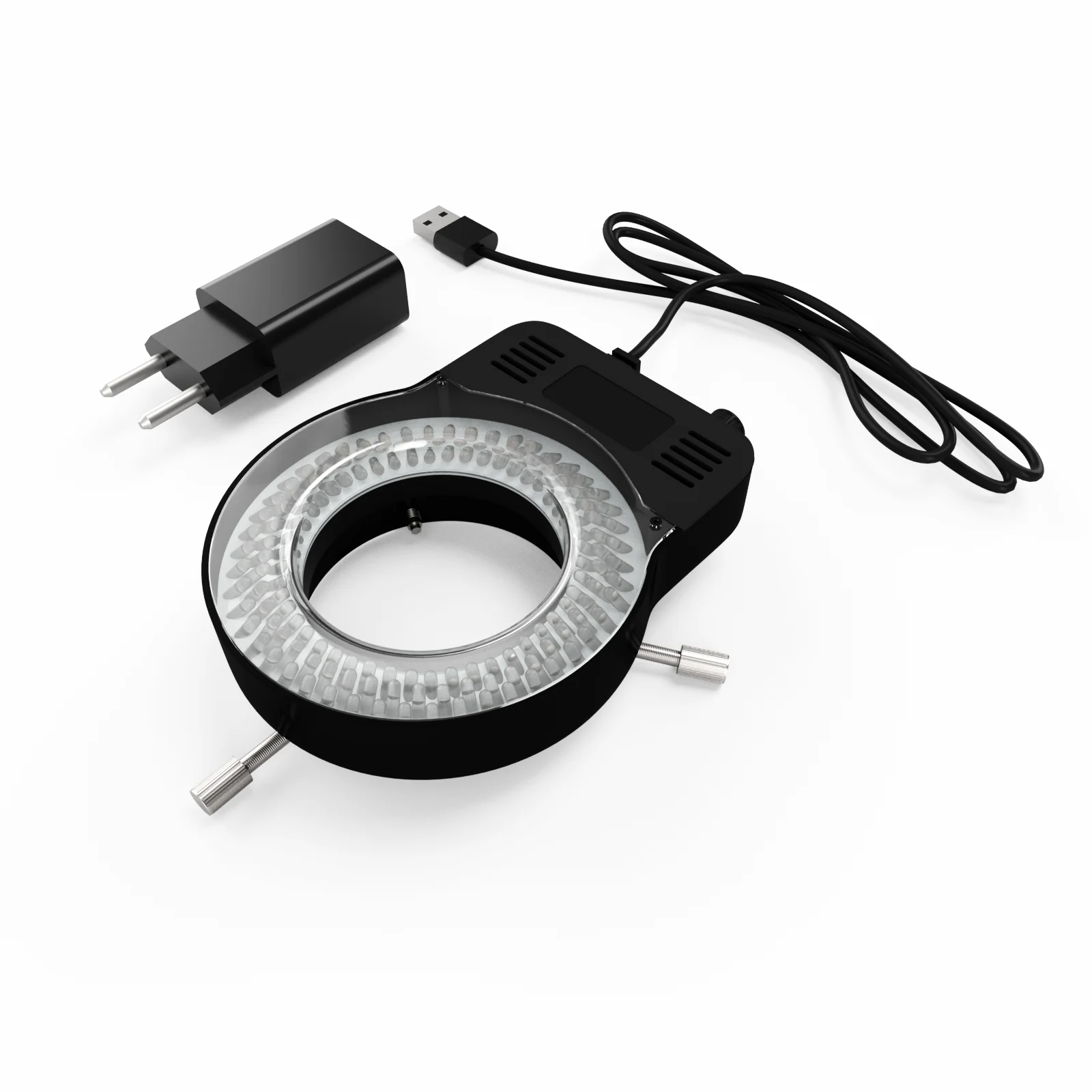

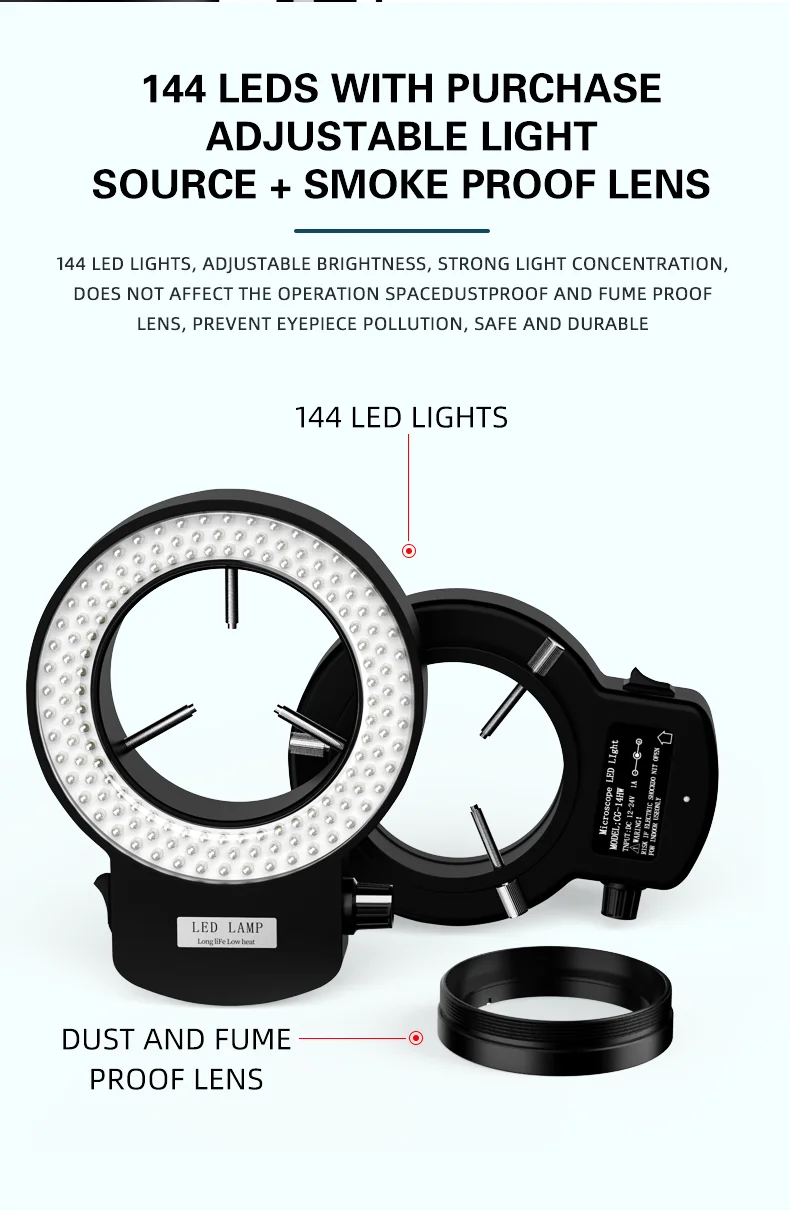

144 LED Ring Light
Input：AC 100-240V , 50/60Hz
Output DC 12V , max 700mA
Number of lights：144 LEDs
Light color：White
Inside diameter 60mm
