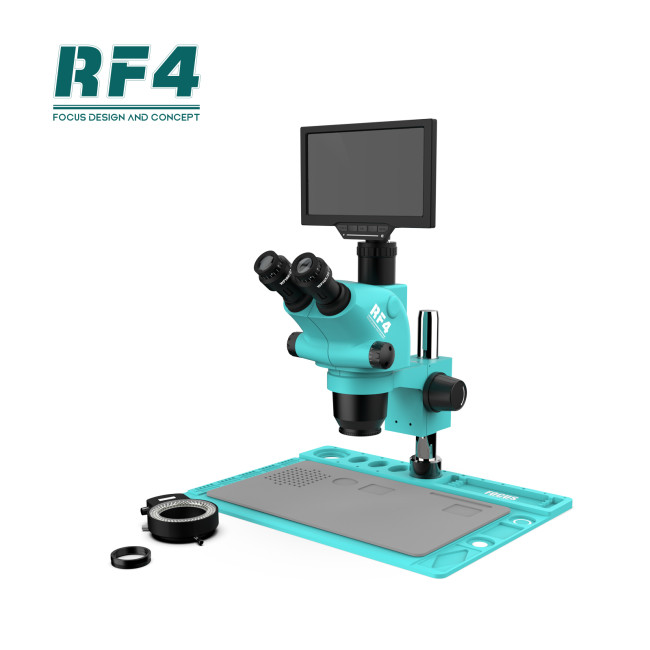

RF4 6.5X-65X Synchronous Continuous Zoom Triocular Microscope With 10 Inch HD WIFI Camera Display Monitor RF6565TVD2-YS010WItem NO.: SR-3005

Microscope detail page

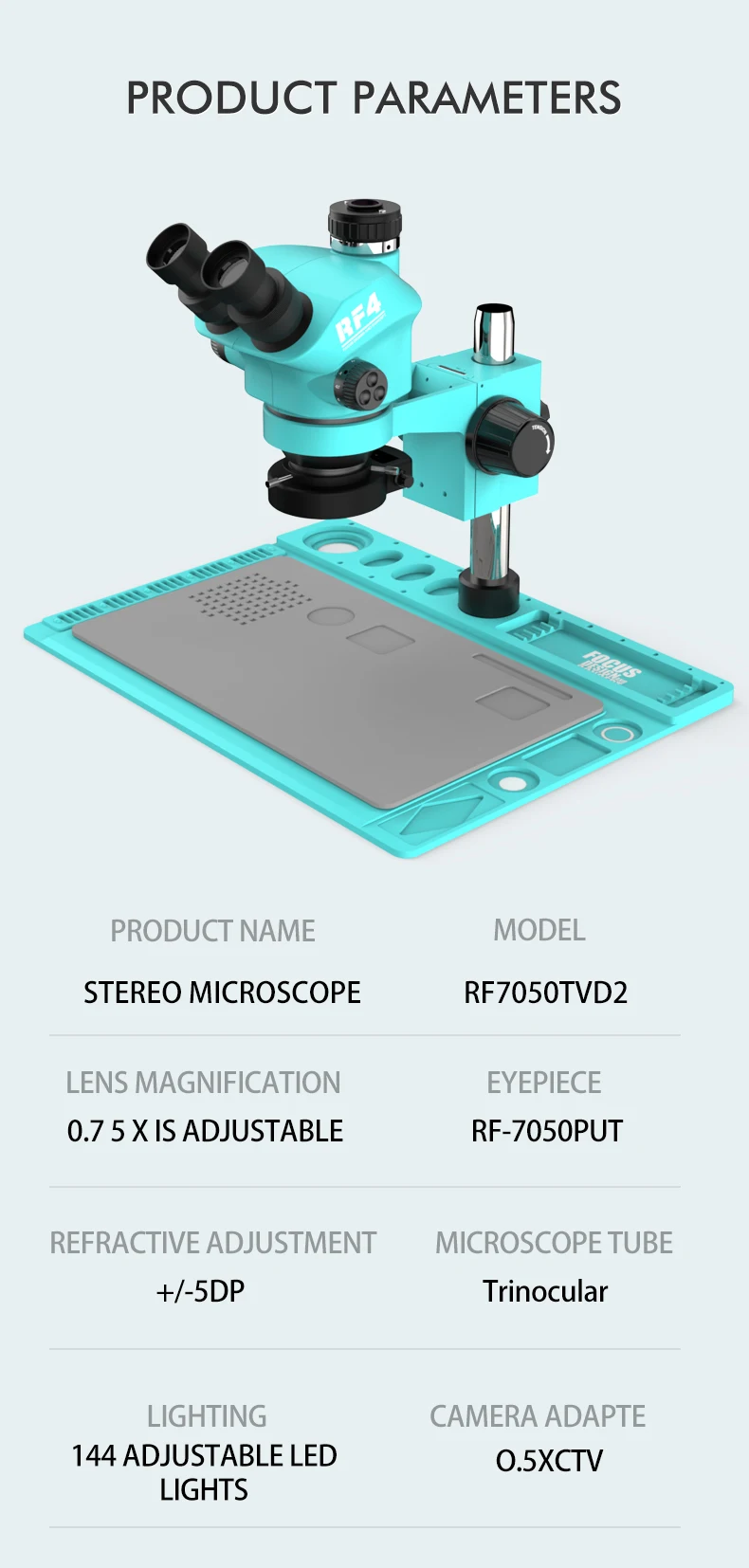

Product parameter

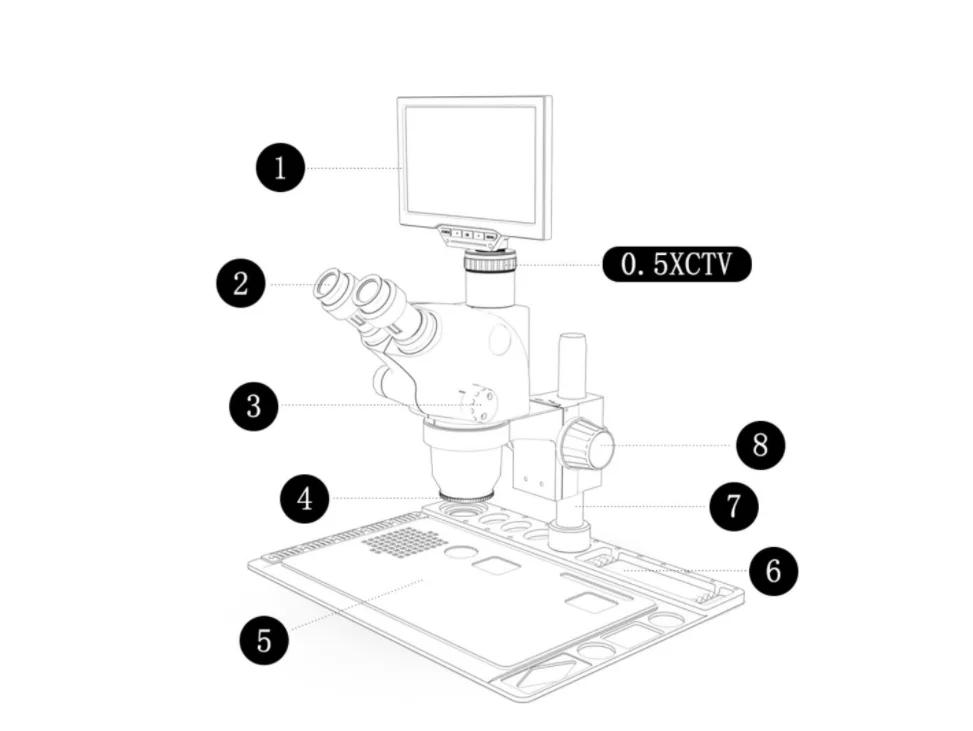

Structure (see image below)
1 Eyepiece guard
2 eyepieces
3 Zoom control knob
4. Microscope objective
5 Base
6 prop position
7 Focus knob
8 round column
1.
Supporting parameter
Column aperture: Φ32mm
Lens aperture: Φ76mm
Center distance: 155mm
Lifting range: 50mm
2.
Basic parameter
Column height: 240mm
Diameter: φ32mm
Base: 380 x260x18mm
3.
Wide-angle eyepiece 10X/22
Magnification: 10X
Wide visual field 22mm
Matching size: 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes
4.
0.5X adapter
1 The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome plated bayonet.
2 The adapter ring can use LCD to focus. This focusing mode is manual.
The 3 adaptor has a transparent mirror inside that helps the microscope display and other displays achieve synchronous zoom.
4 Weight: 0.09kg.
5.
RF4 Adjustable 144 LED Lighting Ring Light Source
1. Parameters
Input AC 100-240V, 50/60Hz
Output DC 12V, maximum 700mA
Maximum output 4.5w-6w
Eu/USA
Lead 144 LED
Lighting (30,000-35,000 Lux)
Color temperature 6000-7000 k
Light white
Inner diameter 60mm
144-led light ring
Power adapter
(1) 144 LED ring lights are specially designed for stereo microscopes and are the best companion for various microscopes and cameras.
(2) It provides the best amount of light for a microscope or camera when additional light sources are needed or when light is insufficient.
(3) Inspection and quality control is no longer a matter of looking at surface defects, and the associated visibility issues are addressed.
(4) Protect users and equipment from mild to severe static electricity
(5) Brightness adjustable, flexible to adapt to any work and consistent lighting object lighting
(6) Adjustable screws for fixing the lamp on the microscope.
(7) Provide cool, uniform, no glare, no focus shadow lighting
(8) Low temperature, even if used for a long time, can also maximize the user's comfort and operability

6.
Dust goggles are used to protect against smoke, oil and dust
It is the ideal lens for every microscope to work together in any condition without affecting its condition to prevent dust, smoke or oil from entering the microscope. Protect the microscope and extend its service life.
1. High quality materials ensure the durability and stability of products
2. Whether the objective lens can be protected to effectively prevent smoke generated during welding from entering the objective lens
3. The high transparency of the lens does not affect observation
4. Beautiful process, strong lens applicability

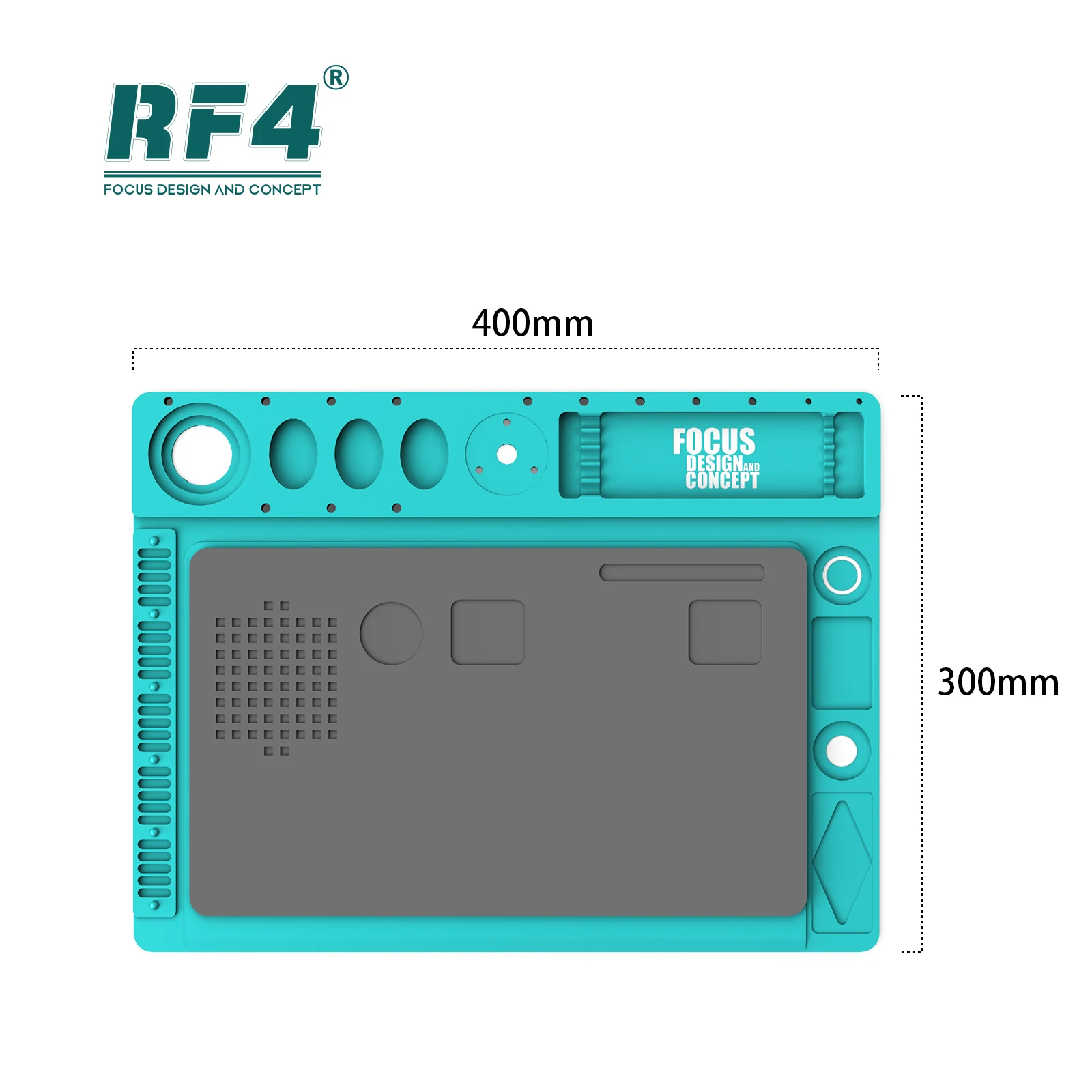

PO2 Silicone pads
7. The newly upgraded two-in-one silicone blanket anti-static heat insulation mat is used for high temperature resistant binocular/three-eye stereoscopic microscope base in large electronic equipment maintenance bases
Product size:
Small pad: 175mm * 215mm
Large cushion: 260mm * 380mm
Product features:
1. Anti-static, anti-high temperature, anti-corrosion
2. Easy to clean with water.
3. Silicone pad material is non-toxic and tasteless
4. Use organic silicon material, easy to deformation after folding.
5. Suitable for heat gun, welding table and tablet computer, computer, mobile phone repair and maintenance. Also suitable for other maintenance platforms, laminating machines and remover bubble machines.

Aluminum alloy chassis.
Aluminum alloy microscope support base insulated silicone pad microscope base fixed mobile phone PCB welding maintenance platform
1, the multifunctional aluminum alloy base can accommodate your microscope, aluminum alloy pad can protect you from the static damage of the mobile phone motherboard.
2, high precision maintenance pad is widely used in the maintenance of mobile phone motherboard, as well as green oil, tin paste, screwdriver, chip, materials, disassembly tools and other consumables. Mobile phones can be placed in this storage pad for easy access.
3. Integrated pad can prevent scraping of welding table
Product size:
Base size: 250*330MM
Small gasket: 175mm*215mm

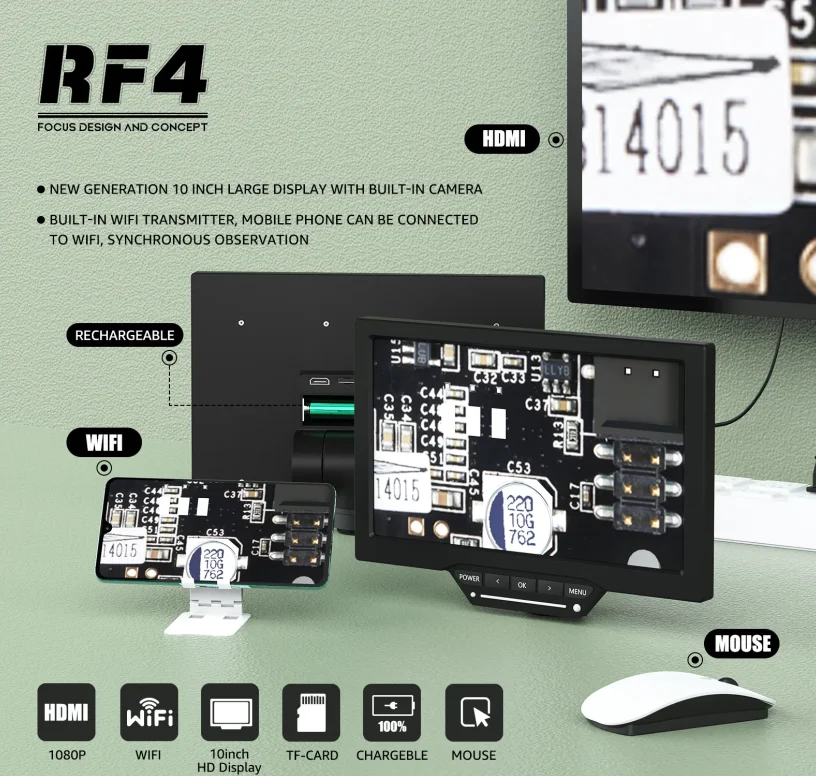

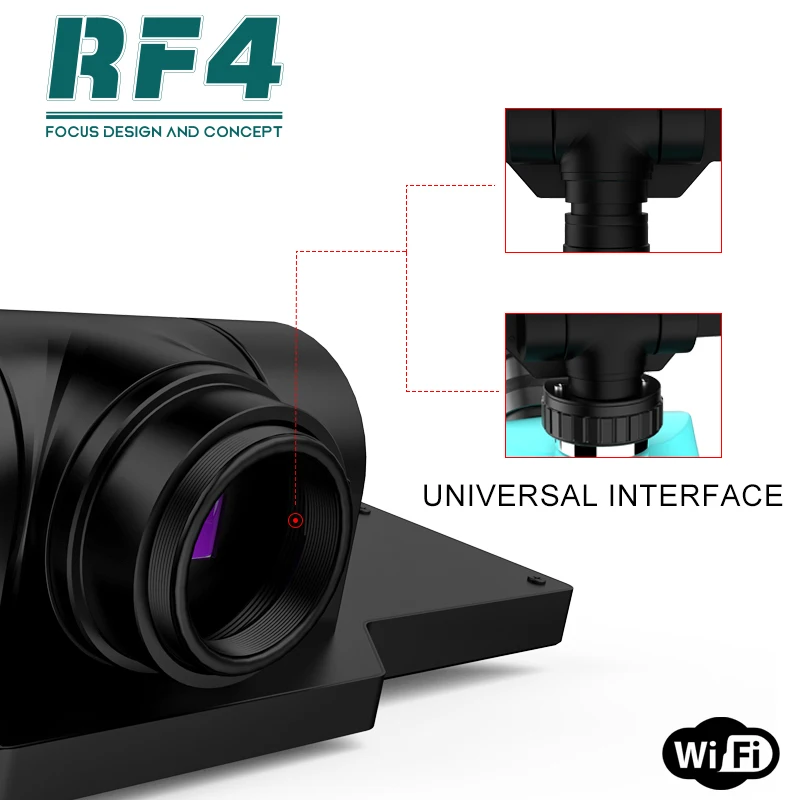

RF4 10 Inches All-in-one High Definition 16 MP Pixel Display Monitor Smart Industrial Microscope WIFI Camera

Screen size: 10 inches
Screen resolution: 1024x600
Image Sensor: 1/3 inch (BSI)
Pixel size: 2um x 2um
Photo Resolution: 2688x1512, 5376*3024 (Interpolation)
video resolution: 1080P30 (clear), 720P60 (smooth)
HDMI resolution: 720P60
USB resolution: 1080P20
WiFi output:720x360@30fps,support Android and iOS (optional)
Exposure control: AE lock, exposure compensation (adjustable at ten levels)
White Balance:Automatic, manual (R, G, B ten level adjustable), one key
Image control: Contrast, saturation, sharpness ten level adjustment
Compared with the screen: full screen, left and right, up and down, 1/4
grid: 8 groups, position, color, thickness adjustable
Measurement: point, line, circle, Angle (optional)
Language: English, Simplified Chinese,Traditional Chinese
Fill light: touch type stepless regulation
Mouse interface: USB-A, recommended to use the original mouse (optional)
 Infrared remote control: maximum 5 meters
WiFi distance: up to 10 meters (optional)
HDMI interface: Type-A
USB interface: Type-C USB2.0
Extended storage: supports up to 32G TF card
 Working distance: 1cm~5m
Body size: 175mm (L) x 129mm (W) x 51mm (H)

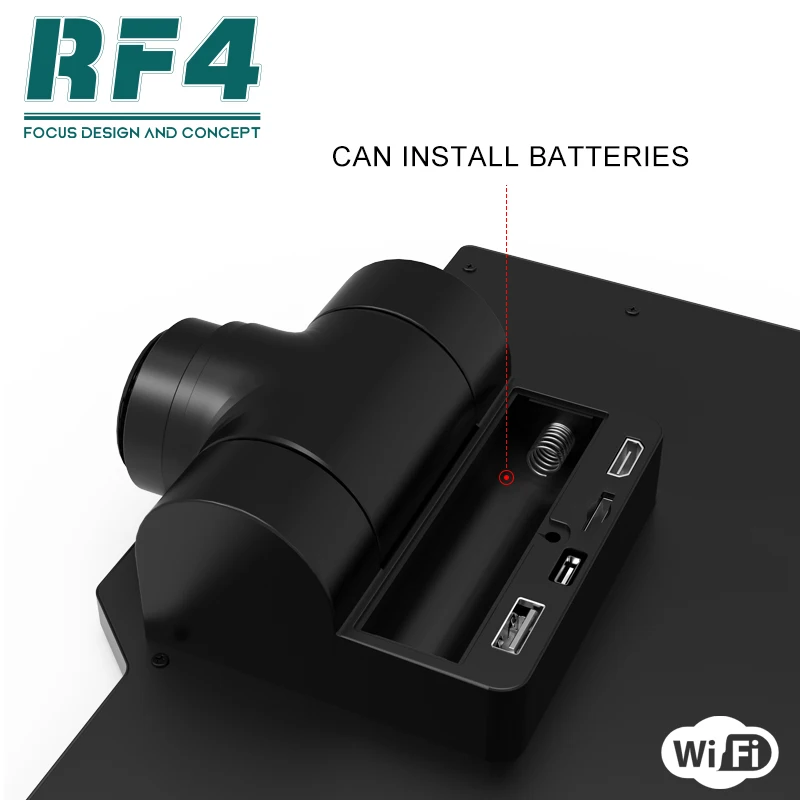

Body weight: 320g (including battery) / 270g (excluding battery)
